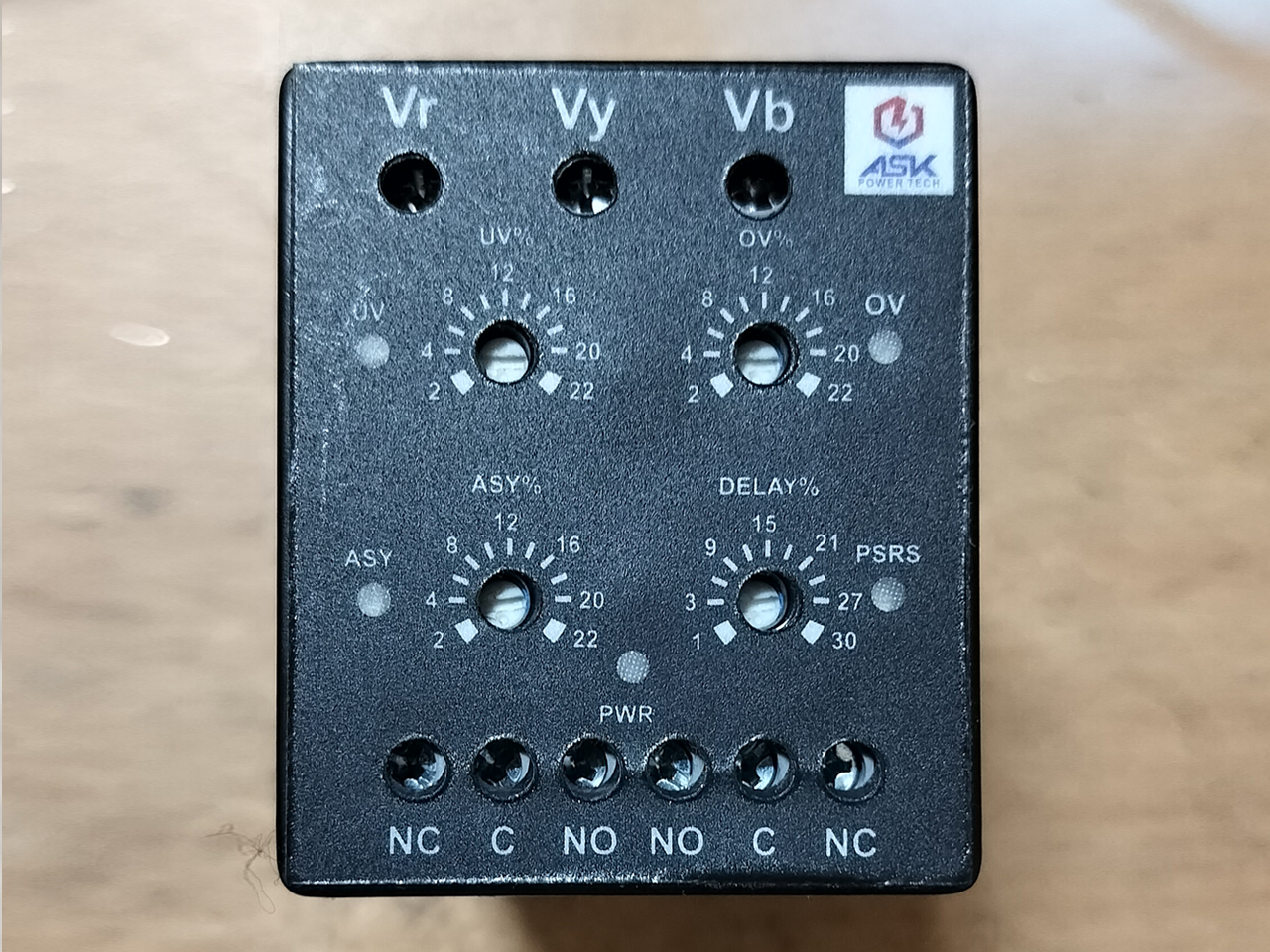

Measuring Monitoring Relay 500V

Model: ASK-3PVM500V

Immutable results against vibrations and shock as per IEC-61373

Performance assured against fire incidents as per the European safety standard EN45545 HL-2

Data Sheet

ParametersSpecification
Auxiliary voltage110V AC/DC
Operating voltage250V-500V (3 Phase, 3 wire)
Frequency50/60Hz
Power consumption10VA
Insulation voltage3KV
Output2 C/O
Ambient temperature-15°C – 55°C
Electrical life100000
Mechanical life3000000
Time delay0.5s – 15s on delay, 5 sec off delay
Trip settingPhase sequence and loss
Phase Asymmetry
Under voltage
Over voltage
FeaturesPhase reversal, phase asymmetry
Under voltage, over voltage
Unbalanced voltage
Time delay
Led indication for power and fault
conditions
Humidity95
EnclosureABS
